MC-Timer UI Design

- Posted in iOS by

For a new version of MC-Timer, I have been looking at reorganising the playback screen, especially the text pointed out here:

MC-Timer progress text below the rings. Song: Sia - The Greatest

Being near the bottom, I don't think people look at this much and combining step values with timing values is probably confusing.

So maybe it will look better when annotated directly over the progress rings? Thankfully SwiftUI makes it easy to experiment with different layouts.

MC-Timer progress text on the rings

Yes, this helps in the understanding of the values, but I had to drop "Music", "Pause", or "Countdown" which didn't look good when written as a curved text. However, the overall aesthetic suffers tremendously.

So it is probably better to keep the texts in the top corners:

MC-Timer progress text in the top corners

This looks much better and the grouping of the timing values on the left vs. the step values on the right helps also. There is no additional information what the "8 / 121" values mean but it does become apparent whenever the red progress bar increments.

But the wide "15s Pause" text spilling over into the top of the red is not ideal, so I will split that into two lines like this:

MC-Timer split progress text in the top corners

Neat!

My app "MC-Timer" supports playing music with a mixture of Apple Music curated playlists, (Apple Music catalog playlists,) Apple Music songs, library playlists as well as individual songs from your media library.

Playback for songs from your media library and for those streamed from Apple Music works well with the iOS media player.

However, for items in your own "catalog playlist", the Apple Music API will return playParams in the JSON response that may look like this:

"playParams": {
    "id": "i.DVENxPRTdlJoV",
    "kind": "song",
    "isLibrary": true,
    "reporting": false,
    "purchasedId": "253867849"
}

By the way, parsing this into a dictionary of type [String: Any] is a huge pain and I wish the media player API could just accept the JSON as is. Apple, please add: MPMusicPlayerPlayParameters(json: String).

To play this song, one can pass on the dictionary with the parameters to the music player as follows:

if let mppp = MPMusicPlayerPlayParameters(dictionary: playParams) {
    // …
}

However, it only captures part of the dictionary:

(lldb) po mppp
<MPMusicPlayerPlayParameters:0x280d983f0 {
    id = "i.DVENxPRTdlJoV";
    isLibrary = 1;
    kind = song;
}>

And when you try to play that:

player.setQueue(with: MPMusicPlayerPlayParametersQueueDescriptor(playParametersQueue: mppp))
player.play()

you will see:

2021-03-12 14:02:37.105160+0100 app[1626:732477] [tcp] tcp_input [C13.1:3] flags=[R] seq=2895265255, ack=0, win=0 state=LAST_ACK rcv_nxt=2895265255, snd_una=3660699433
2021-03-12 14:02:39.764732+0100 app[1626:732039] [SDKPlayback] Failed to prepareToPlay error: Error Domain=MPMusicPlayerControllerErrorDomain Code=6 "Failed to prepare to play" UserInfo={NSDebugDescription=Failed to prepare to play}

and the music player will play any random song from your library instead.

Neither does it work to play the song via its store identifier:

player.setQueue(with: [ "i.DVENxPRTdlJoV" ])

Apparently, this is a known problem for years, and it has not been fixed.

I hear that the purchaseId should be used instead, but this is undocumented. Also, if that is the case, the MPMusicPlayerPlayParameters should handle that under the hood.

On Apple TV with tvOS 14.4, once Apple Music access is enabled, the following commands will cause an app to crash:

let songStoreID = "900032829"
let musicPlayer = MPMusicPlayerController.applicationQueuePlayer  // [1]
musicPlayer.setQueue(with: [ songStoreID ])
musicPlayer.prepareToPlay()    // <-- crashes here [2]
musicPlayer.play()   // if skipping [2], it would crash here instead

In the Xcode console log, I note these messages:

// [1]
[APSLogUtils] [AirPlayError] APSCopyPairingIdentity:627: got error 4099/0x1003 NSXPCConnectionInvalid
[MediaRemote] Error fetching local receiver pairing identity (OSStatus = 4099)

// [2]
[SDKPlayback] applicationQueuePlayer _establishConnectionIfNeeded timeout [ping did not pong]

Note: It does NOT crash when using MPMusicPlayerController.systemMusicPlayer.

Apple feedback id: FB8985422

The calculation for 256^8 using Doubles works as expected:

(lldb) po pow(Double(256), Double(8))
1.8446744073709552e+19

However, trying to convert the result into a Decimal crashes:

(lldb) po Decimal(pow(Double(256), Double(8)))
error: Execution was interrupted, reason: EXC_BAD_INSTRUCTION (code=EXC_I386_INVOP, subcode=0x0).
The process has been returned to the state before expression evaluation.

Decimals should handle values with up to 38 digits as mantissa with exponents from –128 through 127.

Apple feedback id: FB7706665

New App: MC-Timer

- Posted in iOS by

I can finally reveal what I have been playing with recently:

MC-Timer App Icon MC-Timer

It is a workout timer which plays music, aimed at training sessions with repeated high-intensity and rest phases. The app will play music when you are working and will be quiet when you are not.

A typical usage example is circuit sessions where you work hard for instance for 45 seconds and rest for 15 seconds, and repeat. In a group, you may want to use the quiet periods to tell your friends what the next exercise is.

MC-Timer Playback screen

You can freely configure the timings and your music playlist, even add songs from Apple Music.

As an universal app it supports both iPhone and iPad. There is even a playback app for Apple TV.

There are neither subscriptions nor in-app purchases, no ads, no pestering review requests, and no usage tracking.

The app is written entirely in Swift, uses MusicKit for playback, and CloudKit with Core Data to synchronise sessions between devices via iCloud. I suppose it could have been finished earlier, but I decided to transition to SwiftUI, which requires iOS 14. Fastlane is used to automate the creation of screenshots.

SwiftUI would be impossible without the preview canvas where our view model can be inspected live. When using Core Data, however, I don't want to preview actual data; I want to be able to supply custom preview-specific data.

To do this, I am creating an in-memory persistent store with hard-coded data:

import SwiftUI
import ShopCore    // Private framework
import CoreData

// …

#if DEBUG

struct ContentView_Preview: PreviewProvider {
    static var previews: some View {
        return ContentView(store: previewStore)
    }

    static let previewStore: ShopKeeper = {
        // Create a dedicated instance, without loading from Core Data
        let store = ShopKeeper()

        // Create the preview coordinator
        let context = PreviewCoordinator.shared.viewContext

        let previewShop =
            NSEntityDescription.insertNewObject(forEntityName:
            ShopModel.entityName(), into: context)
            as! ShopModel

        // Data to be shown in the preview canvas:
        previewShop.name = "Preview Shop"
        previewShop.comment = """
This is a dynamically created preview shop that
is stored in an in-memory \"persistent\" store.
"""
        // …

        try? context.save()

        // Show just our preview store
        store.list = [ previewStore ]
        return store
    }()
}

And this is how the in-memory persistent store is set up for the preview:

private class PreviewCoordinator {
    static let shared = PreviewCoordinator()

    let objectModel: NSManagedObjectModel
    let storeCoordinator: NSPersistentStoreCoordinator
    let viewContext: NSManagedObjectContext

    init() {
        objectModel = NSManagedObjectModel()
        objectModel.entities = [
            ShopModel.previewDescription()
        ]

        storeCoordinator =
            NSPersistentStoreCoordinator(managedObjectModel:
            objectModel)

        viewContext = NSManagedObjectContext(concurrencyType:
            .mainQueueConcurrencyType)

        do {
            try storeCoordinator.addPersistentStore(ofType:
                NSInMemoryStoreType, configurationName: nil, at: nil,
                options: nil)
            viewContext.persistentStoreCoordinator = storeCoordinator
        } catch {
        }
    }
}

#endif

To make this work, our managed object needs to be able supply its entity (class) name:

extension NSManagedObject {
    public class func entityName() -> String {
        // Typically: "MyApp.MyModel"
        let moduleAndClassName = NSStringFromClass(object_getClass(self)!)
        // Return just: "MyModel"
        return String(moduleAndClassName.split(separator: ".").last!)
    }
}

I cannot load the Core Data model description, since it is located in an embedded framework. Therefore, the entity property cannot be used; instead the ShopModel needs to supply a preview-specific entity description:

import CoreData

#if DEBUG

extension ShopModel {
    // Returns the entity description, mirroring what is defined
    // in the .xcdatamodeld file for Core Data.
    // Beware: To be kept in sync with the .xcdatamodeld !!!
    public class func previewDescription() -> NSEntityDescription {
        let entity = NSEntityDescription()

        entity.name = entityName()
        entity.managedObjectClassName =
            "ShopCore." + (entity.name ?? "none")
        entity.renamingIdentifier = entity.name

        entity.properties = [
            NSAttributeDescription(name: "id",
                type: .UUIDAttributeType, optional: true),
            NSAttributeDescription(name: "name",
                defaultValue: "New Shop"),
            // …
        ]
    }
}

#endif

The most critical part turned out to be the managedObjectClassName - it needs to be set correctly or else the as! ShopModel cast will fail. Normally, the class name would be something like "ShopApp.ShopModel", but in my case, where the ShopModel is declared in an embedded "ShopCore" framework, it would be "ShopCore.ShopModel". To eliminate these conflicts, it is a good idea to manually set the Module (to "ShopCore") for each object in the .xcdatamodeld editor.

To streamline the above code, I also added a convenience initialiser, with defaults that are specific to my use case:

#if DEBUG

extension NSAttributeDescription {
    // Used below to create properties for the entity description.
    convenience public init(name: String,
        type: NSAttributeType = .stringAttributeType,
        defaultValue: Any? = nil, optional: Bool = false) {

        self.init()

        self.name = name
        self.renamingIdentifier = name
        self.isOptional = optional
        self.defaultValue = defaultValue
        self.attributeType = type

        switch type {
        case .stringAttributeType:
            self.attributeValueClassName = "NSString"
        case .dateAttributeType:
            self.attributeValueClassName = "NSDate"
        case .UUIDAttributeType:
            self.attributeValueClassName = "NSUUID"
        default:
            self.attributeValueClassName = "NSNumber"
        }
    }
}

#endif

Update History

[2020-08-14] Now using a constant managedObjectClassName prefix. [2020-08-09] Renamed entityDescription() to previewDescription(), clarifying why entity cannot be used. Moved previewStore into the ContentView_Preview struct, avoiding the use of a global valiable. Moved convenience init() to be last.

For a long time, I have been trying to avoid scroll bars in the screenshots that I generate. The solution that I came up with was simply to wait for them to disappear:

thirdBlock.element.swipeUp()

// Wait for the scroll indicators to be hidden
Thread.sleep(forTimeInterval: 2.5)

takeSnapshot("Last_Block")

I have also been using fastlane for several years to automate this. While I try very hard never to add any screenshot-specific exceptions to the code, there has always been the odd need to do it, for instance to handle situations that are not supported by the iOS simulator.

Preprocessor Macros

For code sections that are only used during development, you should mask them out using "preprocessor macros" like:

#if DEBUG
print("Data finished loading.")
#endif

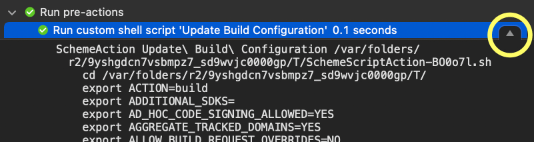

This works using an Xcode project setting that defines SWIFT_ACTIVE_COMPILATION_CONDITIONS to use DEBUG, which results in the command-line option -D DEBUG to be used by CompileSwift. You can see this if you dive deep into your build logs.

Similarly, you can mask sections that are only (or never) to be used in the simulator like this:

#if targetEnvironment(simulator)
    // iOS simulator only
#else
    // iOS device only
#endif

Simple inversions are also supported in Swift using an exclamation mark (read it as: "not"):

#if ! targetEnvironment(simulator)
    // iOS device only
#endif

Fastlane-Specific Code

The same can be done for fastlane-specific code, but it is necessary to define a macro, for instance in the fastlane/Snapfile. Here we define FASTLANE:

# Add a define for xcodebuild
xcargs "SWIFT_ACTIVE_COMPILATION_CONDITIONS=FASTLANE"

which allow us to use in the code:

#if FASTLANE
    // fastlane only
#endif

No Scroll Bars in Fastlane

Using the above macro, I have now simply disabled the scroll bar indicators in the code:

override func viewDidLoad() {
    super.viewDidLoad()

    navigationItem.rightBarButtonItem = editButtonItem

    #if FASTLANE
    tableView.showsVerticalScrollIndicator = false
    tableView.bounces = false
    #endif
}

And this means that the test script can be made to run without additional delays (compare above):

thirdBlock.element.swipeUp()
takeSnapshot("Last_Block")

[UPDATE 2021-01-21] In SwiftUI, you could use:

List {
    ...
}
.onAppear {
    #if FASTLANE
    UITableView.appearance()
        .showsVerticalScrollIndicator = false
    #endif
}

Bash Script to Scale AppIcons

- Posted in iOS by

The Old Automator Flow

In a previous post, I described an Automator workflow to rescale iOS app icons. While that has worked well, it had potential for improvement:

  1. The workflow document is not easily edited, at least not on a slow machine like mine;

  2. When saved, the workflow document contains a preview image which blows up the file to about 1 GB. The preview image can be removed, but it adds another manual hack that is required.

Because of these shortfalls, I became increasingly reluctant to use it and found myself resizing images manually again.

Welcome to sips

I don't know how long it has been there, but it turns out macOS contains a command-line utility to convert images: sips (scriptable image processing system). You can check if it is installed on your machine using:

$ which sips
/usr/bin/sips

or

$ sips -h
sips - scriptable image processing system.
This tool is used to query or modify raster image files and ColorSync ICC profiles.
Its functionality can also be used through the "Image Events" AppleScript suite.

  Usages:
    sips [image-functions] imagefile ...
    sips [profile-functions] profile ...

[...]

Using sips

With some tips from this post, I have now set up the following script, saved in a file like ~/bin/resizeAppIcons, (i.e. in a directory listed in your $path variable):

#!/bin/sh
help=0
errs=0
pngquant=/Applications/ImageAlpha.app/Contents/MacOS/pngquant
colours=256

args=$(getopt h: *)     # do not use "$@" to work with 'set' below.
if [ $? != 0 ]; then ((help++)); fi

set -- $args
for i ; do
    case "$i" in
    -h)
        ((help++))
        shift;;
    --)
        shift; break;;
    esac
done

if [ $help -gt 0 ]; then
    echo "USAGE: $(basename $0) [-h] [pngFiles...]"
    exit 2
fi

if [ ! -x $pngquant ]; then
    echo "Warning: ImageAlpha.app is not installed"
fi

for img in $* ; do
    echo "$img"

    # Get the current image size: ( width height )
    size=( $(sips -g pixelWidth -g pixelHeight "$img" | grep -o '[0-9]*$') )

    # We expect 1024 x 1024.
    if [[ ${size[0]} -ne ${size[1]} || ${size[0]} -ne 1024 ]]; then
        echo "Error: Image size should be 1024 x 1024 (not ${size[0]} x ${size[1]})."
        ((errs++))
    fi

    # Split the file path:            path/to/filename.png
    dirn=$(dirname "$img")          # path/to
    base=$(basename "${img%.*}")    #         filename
    extn=${img##*.};                 #                  png

    if [[ $extn != "png" ]]; then
        echo "Error: Expected image format is PNG (not $extn)."
        ((errs++))
    fi

    if (( $errs )); then
        echo "Too many errors; giving up"
        exit 1
    fi

    # Using all the known image sizes:
    for width in 16 18 19 32 36 38 40 48 55 58 60 64 80 87 88 100 120 128 152 167 172 180 196 216 256 512 1024 ; do
        outfile="$dirn/$base-$width.$extn"

        # Do not overwrite existing files
        if [[ -f "$outfile" ]]; then continue; fi

        echo "--> $outfile"

        # Copy or resize the image
        if [ $width -eq 1024 ]; then
            cp "$img" "$outfile"
        else
            sips -Z $width "$img" --out "$outfile" $gt; /dev/null
        fi

        # Use exec in ImageAlpha to reduce colours and size.
        if [[ -x $pngquant ]]; then
            $pngquant -f $colours -o "$outfile" "$outfile"
        fi
    done
done

exit 0

Feel free to adjust the for width in ... line to use the image sizes that you need.

Usage

The script requires a 1024 x 1024 pixel PNG image as input. It creates the scaled images in the same directory:

$ resizeAppIcons ./work/export/AppIcon.png
./work/export/AppIcon.png
--> ./work/export/AppIcon-16.png
[...]
--> ./work/export/AppIcon-512.png
--> ./work/export/AppIcon-1024.png

Image Alpha

Finally, I can recommend the use of ImageAlpha, which will optimize your images and reduce the colours. Once installed in /Applications, the script will pick it up.

For my simple icons, I can get away with just 256 colours. If your icons are more complex, adjust the $colour variable as needed.

Last night, I found myself in this endless loop:

  1. The Mac OS Catalina installer cancels with the message that "macOS could not be installed on your computer: There is not enough free space on your disk to install", offering me to quit the installation or to restart and try again. The only visible button is "Restart".
  2. Trying to delete files using the Terminal application from the installer is fruitless. It never is enough.
  3. Reboot always returns to the installer since the original start volume is no longer bootable. Back to square one.

Diagnosis

The only tools available from the installer are Disk Utility and Terminal. Opening Disk Utility reveals a mere 10 GB of space on my disk, where it should have been more than 30 GB.

Running "First Aid", and opening the disclosure triangle to get more information reveals that there are three Time Machine snapshots on my disk. Fine, let’s delete them, but how?

Disk Utility offers no commands to handle Time Machine snapshots.

Where is tmutil?

Numerous solutions articles on the web suggest to use tmutil to manage Time Machine snapshots and settings.

Back in the Terminal, I type tmutil, but all I get is:

-bash-3.2# tmutil
tmutil : command not found

It turns out, the installer image is not a complete macOS system and tmutil is not available.

I also searched the contents of my drive, but to no avail:

-bash-3.2# find /Volume/Dizzy -name tmutil -print

Not knowing which commands are available, I find myself typing a<TAB> to see commands starting with 'a', b<TAB>, then c<TAB>. For d<TAB>, I see diskutil, and this is where it the solution lies.

Solution: diskutil

All the steps in order:

  1. If the menu bar in your installer isn't visible, click on one of the icons in the top-right corner of the screen. The menu bar should become visible.
  2. From the menu bar, open the Terminal application.
  3. You can type diskutil to see the commands that are available:

    -bash-3.2# diskutil
    Disk Utility Tool
    Utility to manage local disks and volumes
    Most commands require an administrator or root user

    WARNING: Most destructive operations are not prompted

    Usage:  diskutil [quiet] <verb> <options>, where <verb> is as follows:

         list                 (List the partitions of a disk)
    [...]
         apfs <verb>          (Perform additional verbs related to APFS)

    diskutil <verb> with no options will provide help on that verb

  4. Note that there are additional "apfs" commands (verbs):

    -bash-3.2# diskutil apfs
    Usage:  diskutil [quiet] ap[fs] <verb> <options>
            where <verb> is as follows:

         list                (Show status of all current APFS Containers)
         listUsers           (List cryptographic users/keys of an APFS Volume)
         listSnapshots       (List APFS Snapshots in a mounted APFS Volume)
    [...]
         deleteSnapshot      (Remove an APFS Snapshot from an APFS Volume)
    [...]
    diskutil apfs <verb> with no options will provide help on that verb

  5. If you don't know the name of your hard disk, you can use diskutil apfs list to see all disks and their names.

  6. Use diskutil apfs listSnapshots to list the snapshots, e.g. for your disk named 'Dizzy':

    -bash-3.2# diskutil apfs listSnapshots Dizzy
    Snapshots for disk1s1 (3 found)
    |
    +-- F5D46466-3269-4480-BA1A-8BE23DF1800
    |   Name:        com.apple.TimeMachine.2019-10-07-205243
    |   XID:         2201791
    |   Purgeable:   Yes
    |
    [...]

  7. To delete a snapshop, use diskutil apfs deleteSnapshot with the UUID copied from the list above:

    -bash-3.2# diskutil apfs deleteSnapshot Dizzy -uuid F5D46466-3269-4480-BA1A-8BE23DF1800
    Deleting APFS Snapshot F5D46466-3269-4480-BA1A-8BE23DF1800 "com.apple.TimeMachine.2019-10-07-205243" from APFS Volume disk1s1
    Started APFS operation
    Finished APFS operation

  8. Repeat for the other snapshots.

In my case, that freed up 50 GB on my disk, allowing the macOS Catalina installer to continue.

[Update 2019-10-21: Corrected typo 'apgf' -> 'apfs']

Resizing Finder Columns

- Posted in macOS by

I enjoy using the column view in the macOS Finder, but more more often than not, I need to resize the columns to be able to read all the file or folder names.

Certainly, resizing is easily done by dragging the vertical column separators to the right until all names are readable. What has been bugging me, however, is that when I do that for the right-most column, I often end up inadvertently resizing the window at the same time.

How to resize the right-most column without resizing the window?

It turns out, you can Ctrl-click (or right-click) on a column separator to open a context menu:

Ctrl-click on a column separator

There you can chose to:

  • Right Size This Column to resize the column to the left of the separator;

  • Right Size All Columns Individually to resize all columns such that they are just as wide as they need to be to be able to read all file and folder names;

  • Right Size All Columns Equally to resize all columns such that they are all equally wide and readable.

So, if you chose one of the Resize All Columns… options, the right-most column will be resized. But, if you had selected the right-most separator, the window may still resize!

Therefore: Ctrl-click on one of the other column separators, not the right-most one. When resizing is initiated there, the window size will not be changed.

Finally, here is the best part:

This also works in a standard macOS "File Open" or "Save As" dialog!

Update

[2019-08-16] You can also double-click on the column separator with your mouse:

Double-click on the column separator to Right Size This Column.

Option+Double-click on the column separator to Right Size All Columns Individually.
